Shopify App

Shopify Integration

The Gamopanda Shopify app adds three Shopify Flow actions and a theme block to your store. Flow actions let you trigger streak and challenge progress from any Shopify automation — order paid, checkout completed, loyalty event — without writing backend code. The theme block embeds the Gamopanda loyalty widget directly into your storefront, surfacing progress and rewards to logged-in customers in real time.

---

Installation

Install the Gamopanda app from the Shopify App Store. Once installed, the Flow actions are immediately available in Shopify Flow and the theme block is available in your theme editor.

---

Floating widget

The Gamopanda Storefront Script is a theme block that embeds the loyalty widget into your storefront. It handles customer authentication automatically and renders the floating widget on every page where it is active.

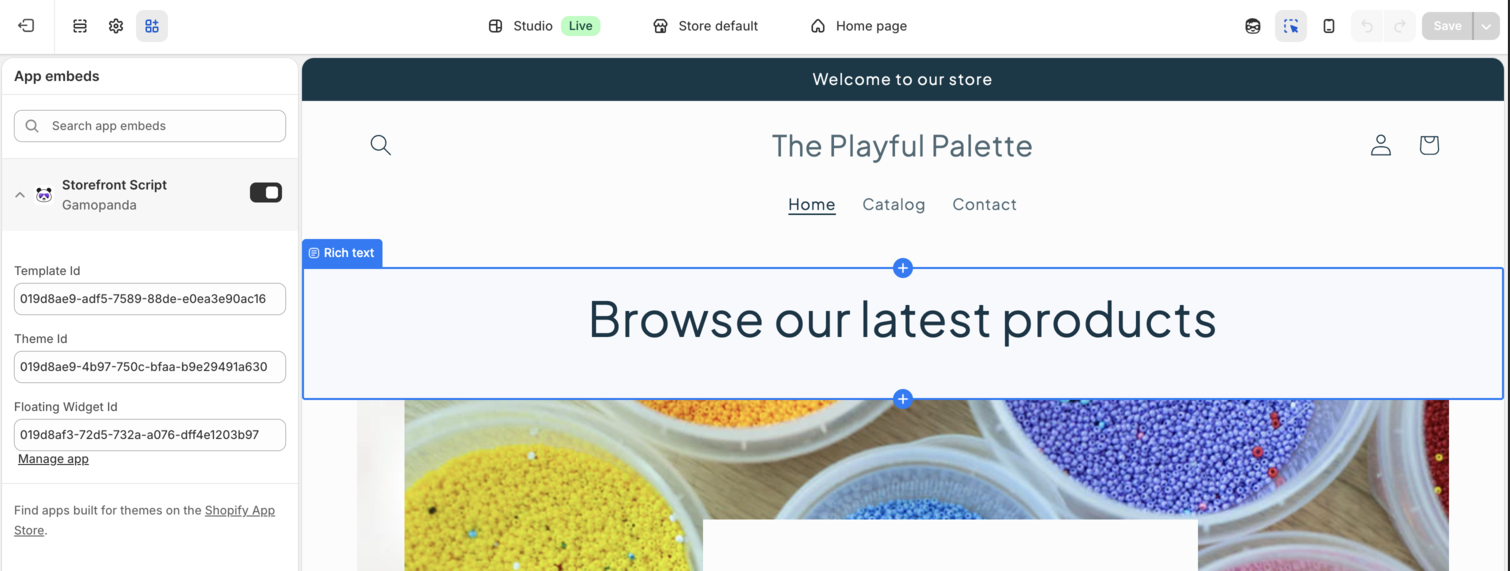

Adding the block to your theme

1. In your Shopify admin, go to Online Store → Themes → Edit Theme.
2. In the theme editor, open App embeds.
3. Find Storefront Script in the Gamopanda app blocks.
4. Configure the widget (see Settings below).
5. Enable the Storefront Script
6. Save your theme.

Storefront Script block configuration

---

Widget settings

Configure the widget appearance and behaviour by entering the IDs from your Gamopanda dashboard:

Setting	Description
Template Id	Controls the widget's copy and localisation. Find this in Gamopanda → Templates. See Template for field details.
Theme Id	Controls the widget's colours and typography. Find this in Gamopanda → Themes. See Theme for field details.
Floating Widget Id	Controls the launcher button style and position. Find this in Gamopanda → Floating Widgets. See Floating Widget for field details.

All three fields are compulsory.

---

How authentication works

The storefront block detects whether a customer is logged in and handles authentication accordingly:

Logged-in customers The block calls the Gamopanda API server-side and fetches the user accessToken. The widget is initialised with the accessToken, giving the customer full access to their progress, milestones, and rewards.

Guest visitors If no customer is logged in, the widget is initialised without an accessToken. The widget renders in guest mode — public content (e.g. how the programme works, available streaks and challenges) is visible, but personal progress is not shown until the customer logs in.

The locale of the storefront (request.locale.iso_code) is passed automatically — no extra configuration needed for multilingual stores.

---

Rendered widget

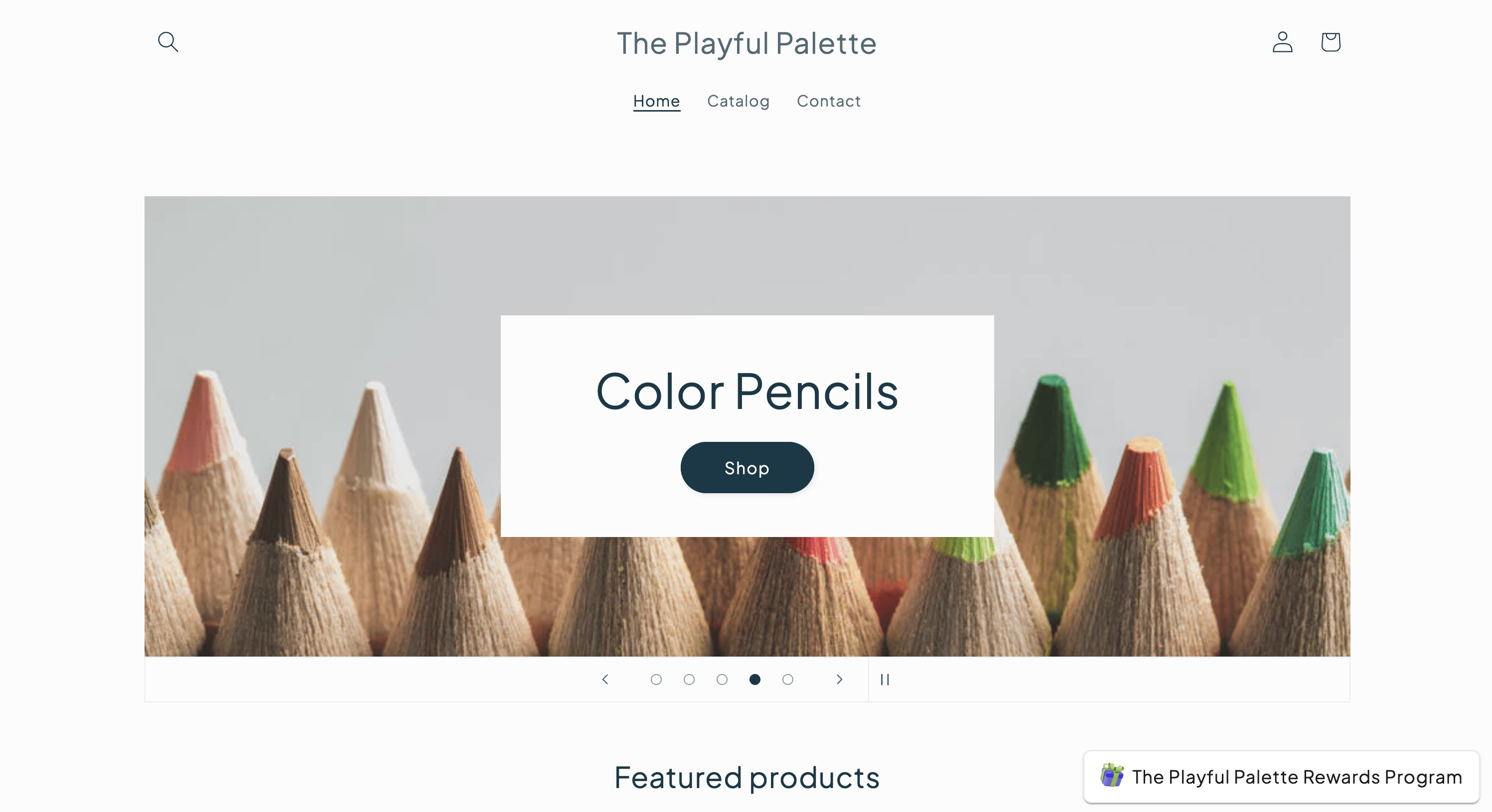

Floating widget on storefront

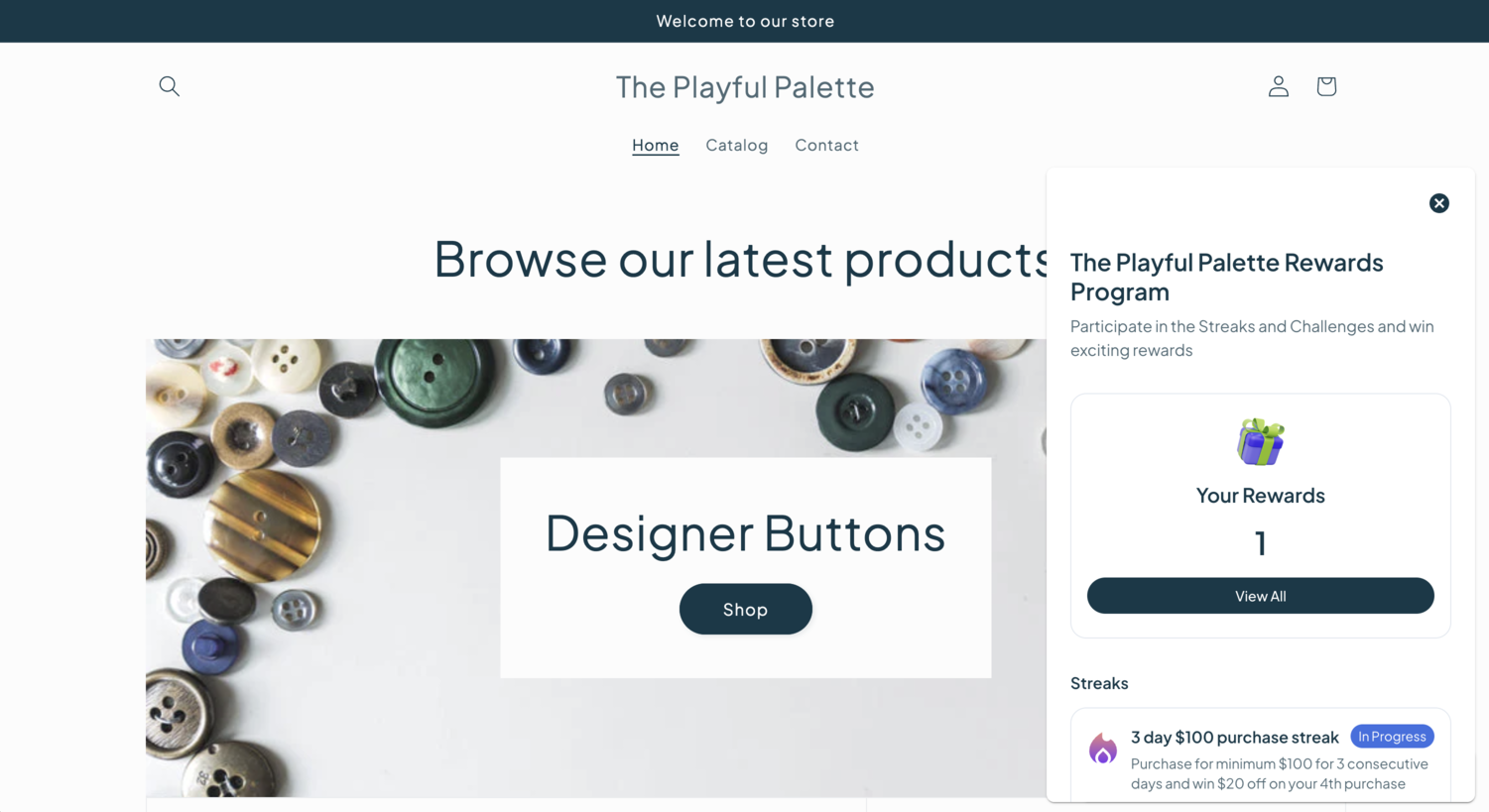

End User Display on storefront (logged-in customer)

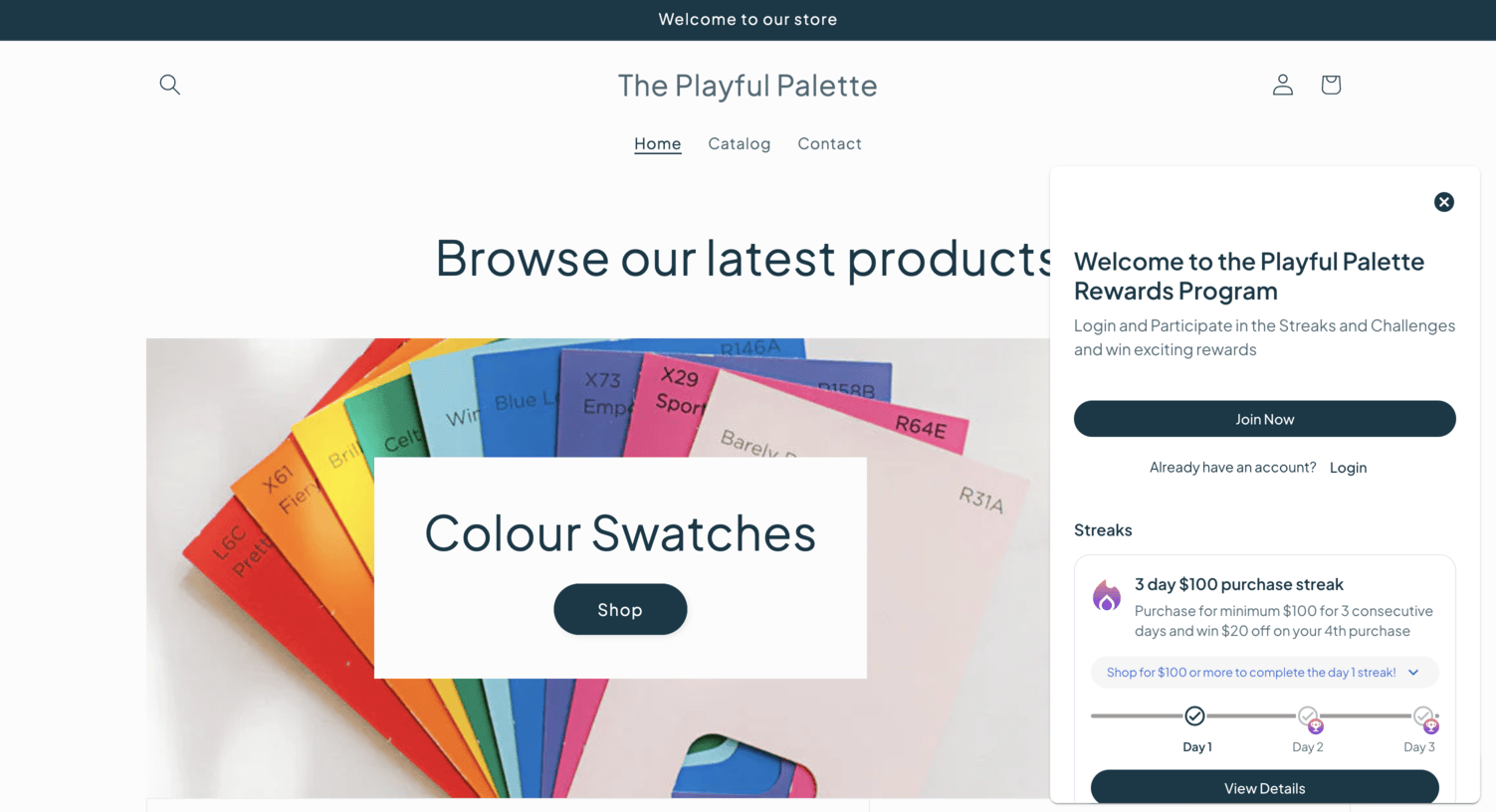

End User Display on storefront (guest visitor)

---

Flow actions

Execute Streak

Logs a customer activity event that contributes to a streak. Use this action in any Flow that tracks repeating behaviour — daily purchases, weekly visits, monthly workouts.

Internally, this action calls POST /schema/streak_log/record on your customer's behalf. See Streak Logs for field details.

Action fields

Field	Required	Description
Customer	✅	The Shopify customer performing the activity. Resolved to a Gamopanda member automatically.
Streak Id	✅	The ID of the Gamopanda streak to log against. Found in your Gamopanda dashboard.
Activity Id	✅	The type of activity — e.g. order_paid, visited_store.
Activity Value	✅	The numeric value of the activity. Use 1 for count streaks. For sum streaks, pass the relevant value (e.g. order total).
Activity At	✅	The datetime the activity occurred. Used to determine the aggregation period.
Unique Identifier	The idempotency key so that duplicate requests are rejected.

Action output

The action returns the created StreakLog record along with streakProgress, achievedMilestone(if any), nextMilestone(if any), taskProgress for the current period and achievedMilestoneRewardLog. You can use these output fields in downstream Flow steps. See Streak Logs for field details.

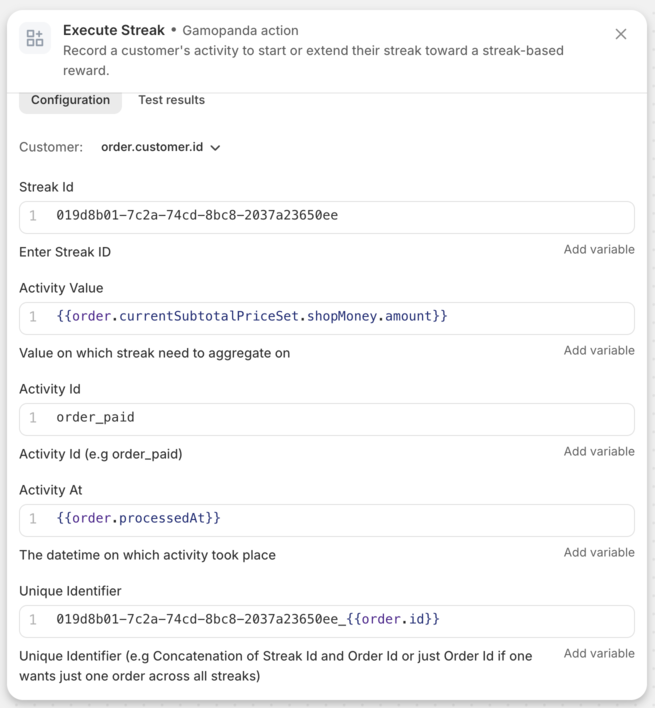

Execute Streak Flow Action

---

Execute Challenge

Logs a customer activity event that contributes to a challenge. Use this action to track cumulative progress toward a spend, visit, or activity target — for example, a monthly $500 spend challenge.

Internally, this action calls POST /schema/challenge_log/record on your customer's behalf. See Challenge Logs for field details.

Action fields

Field	Required	Description
Customer	✅	The Shopify customer performing the activity. Resolved to a Gamopanda member automatically.
Challenge Id	✅	The ID of the Gamopanda challenge to log against. Found in your Gamopanda dashboard.
Activity Id	✅	The type of activity — e.g. order_paid, order_created.
Activity Value	✅	The numeric value of the activity. Use 1 for count challenges. For sum challenges, pass the spend amount, step count, or other measurable value.
Activity At	✅	The datetime the activity occurred.
Unique Identifier	The idempotency key so that duplicate requests are rejected.

Action output

The action returns the created ChallengeLog record along with challengeProgress, achievedMilestone(if any), nextMilestone(if any) for the current period and achievedMilestoneRewardLog. You can use these output fields in downstream Flow steps. See Challenge Logs for field details.

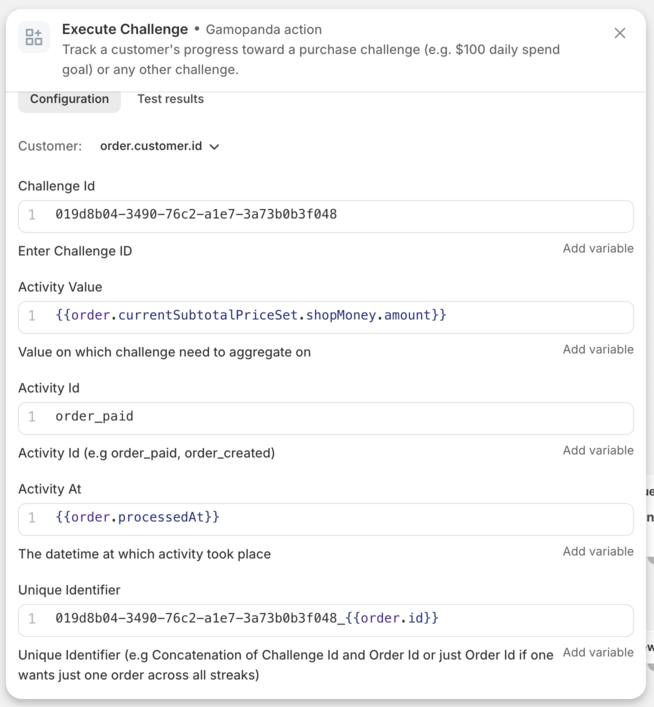

Execute Challenge Flow Action

---

Execute Mission

Logs a customer activity event that contributes to a mission. Use this action to track cumulative progress toward a mission target — for example, a monthly $500 spend mission.

Internally, this action calls POST /schema/mission_log/record on your customer's behalf. See Mission Logs for field details.

Action fields

Field	Required	Description
Customer	✅	The Shopify customer performing the activity. Resolved to a Gamopanda member automatically.
Mission Id	✅	The ID of the Gamopanda mission to log against. Found in your Gamopanda dashboard.
Activity Id	✅	The type of activity — e.g. order_paid, order_created.
Activity Value	✅	The numeric value of the activity. Use 1 for count missions. For sum missions, pass the spend amount, step count, or other measurable value.
Activity At	✅	The datetime the activity occurred.
Unique Identifier	The idempotency key so that duplicate requests are rejected.

Action output

The action returns the created MissionLog record along with missionProgress, achievedMilestone(if any), nextMilestone(if any) for the current period and achievedMilestoneRewardLog. You can use these output fields in downstream Flow steps. See Mission Logs for field details.

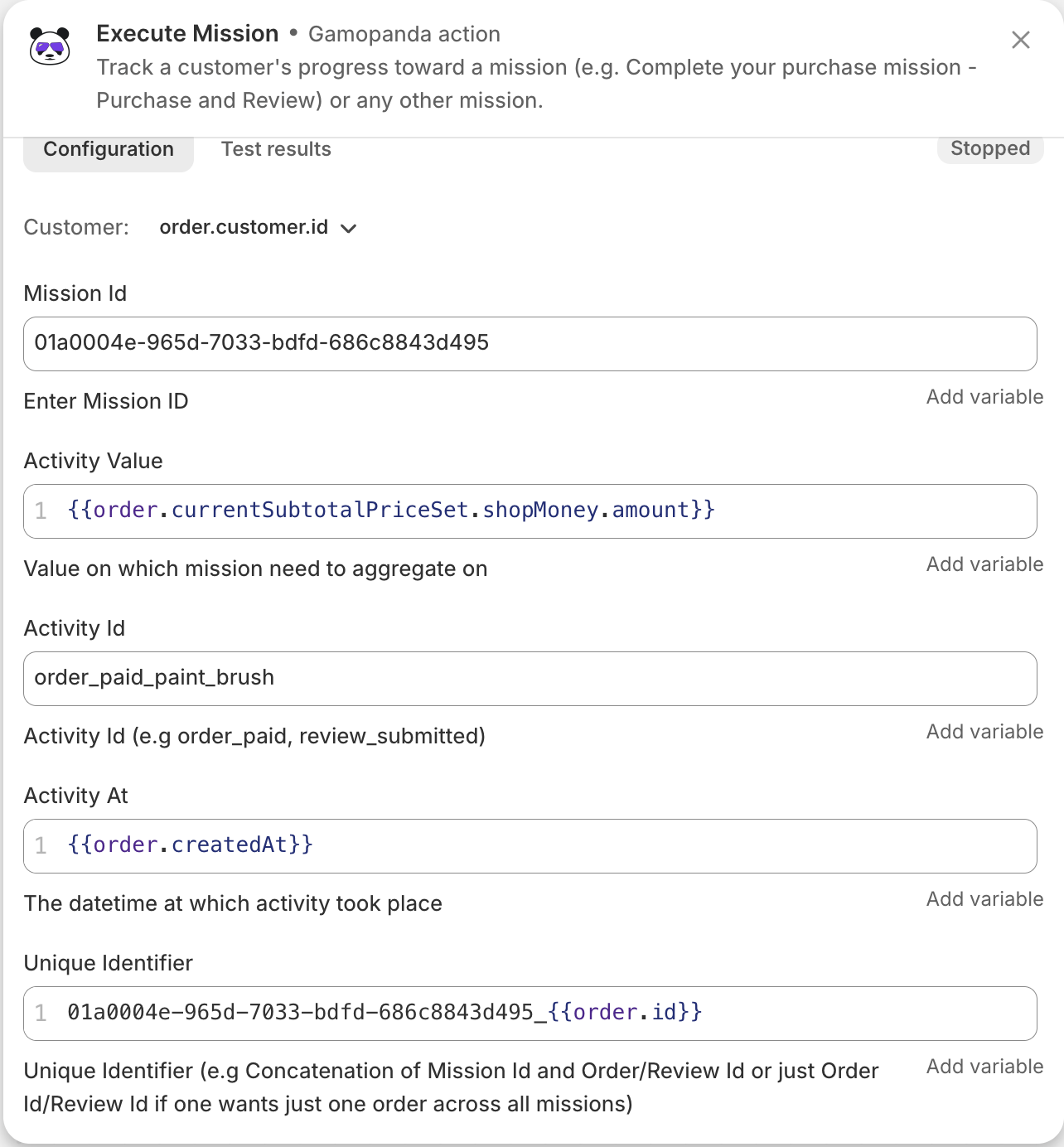

Execute Mission Flow Action

---

Update Milestone Reward Log with Coupon

Stamps a coupon code and issuance timestamps onto a Reward Log. Use this action immediately after Execute Streak or Execute Challenge detects a milestone crossing — it fulfils the reward by writing the coupon code back to the Reward Log record.

Action fields

Field	Required	Description
Customer	✅	The Shopify customer who earned the reward.
Reward Log Id	✅	The ID of the Reward Log to update. Use the achievedMilestoneRewardLog.id output from Execute Streak or Execute Challenge.
Coupon Code	✅	The discount code issued to the customer. Generate this via Shopify's built-in discount actions before this step.
Reward Issued At	✅	The datetime the reward was issued.
Reward Expiry At	✅	The datetime the reward expires.

Typical Flow pattern

Code
Trigger: Order paid
  → Execute Streak / Execute Challenge
    → Condition: achievedMilestoneRewardLog.id is not empty
      → Create Discount Code (Shopify native)
        → Update Milestone Reward Log with Coupon

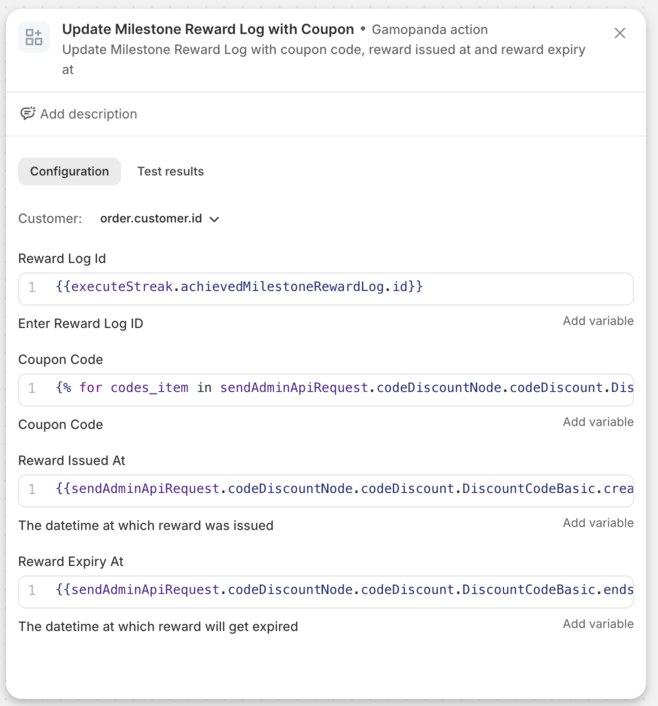

Update Milestone Reward Log with Coupon Flow Action

---

Using HTTP Request in Flow (non-Shopify Plus)

The Gamopanda Flow actions above are custom app extensions — on some Shopify plans these require Shopify Plus. If your store is on a standard plan and cannot use custom app actions, you can replicate the same behaviour using Shopify Flow's built-in HTTP Request action to call the Gamopanda API directly.

---

Logging a streak activity

Use the HTTP Request action to call POST /schema/streak_log/record. See Streak Logs for the full list of fields, required parameters, and response structure.

HTTP Request configuration:

Setting	Value
URL	/api/v1.0/schema/streak_log/record
Method	POST
Headers	x-api-key: <your-api-key> · x-api-secret: <your-api-secret> · Content-Type: application/json

Request body (map Flow variables to these fields):

Code
{
  "streakId": "your-streak-id",
  "ownedBy": {
    "externalId": "{{ order.customer.id }}"
  },
  "activityId": "order_paid",
  "uniqueIdentifier": "your-streak-id_{{ order.id }}",
  "activityAt": "{{order.processedAt}}",
  "activityValue": "{{order.currentSubtotalPriceSet.shopMoney.amount}}",
  "status": "live"
}

See Streak Logs for the full field reference and response details, including how to read achievedMilestoneRewardLog from the response to chain into a coupon update step.

Logging a challenge activity

Use the HTTP Request action to call POST /schema/challenge_log/record. See Challenge Logs for the full list of fields, required parameters, and response structure.

HTTP Request configuration:

Setting	Value
URL	/api/v1.0/schema/challenge_log/record
Method	POST
Headers	x-api-key: <your-api-key> · x-api-secret: <your-api-secret> · Content-Type: application/json

Request body (map Flow variables to these fields):

Code
{
  "challengeId": "your-challenge-id",
  "ownedBy": {
    "externalId": "{{ order.customer.id }}"
  },
  "activityId": "order_paid",
  "uniqueIdentifier": "your-streak-id_{{ order.id }}",
  "activityAt": "{{order.processedAt}}",
  "activityValue": "{{order.currentSubtotalPriceSet.shopMoney.amount}}",
  "status": "live"
}

See Challenge Logs for the full field reference and response details, including how to read achievedMilestoneRewardLog from the response to trigger a reward.

Logging a mission activity

Use the HTTP Request action to call POST /schema/mission_log/record. See Mission Logs for the full list of fields, required parameters, and response structure.

HTTP Request configuration:

Setting	Value
URL	/api/v1.0/schema/mission_log/record
Method	POST
Headers	x-api-key: <your-api-key> · x-api-secret: <your-api-secret> · Content-Type: application/json

Request body (map Flow variables to these fields):

Code
{
  "missionId": "your-mission-id",
  "ownedBy": {
    "externalId": "{{ order.customer.id }}"
  },
  "activityId": "order_paid",
  "uniqueIdentifier": "your-mission-id_{{ order.id }}",
  "activityAt": "{{order.processedAt}}",
  "activityValue": "{{order.currentSubtotalPriceSet.shopMoney.amount}}",
  "status": "live"
}

See Mission Logs for the full field reference and response details, including how to read achievedMilestoneRewardLog from the response to trigger a reward.

Updating a reward log with a coupon

Once a milestone is crossed (detected from the achievedMilestoneRewardLog in the streak or challenge log response), use a second HTTP Request action to stamp the coupon. See Reward Log for field details.

HTTP Request configuration:

Setting	Value
URL	/api/v1.0/schema/reward_log/record/{{ achievedMilestoneRewardLog.id }}
Method	PATCH
Headers	x-api-key: <your-api-key> · x-api-secret: <your-api-secret> · Content-Type: application/json

Request body:

Code
{
  "couponCode": "{% for codes_item in sendAdminApiRequest.codeDiscountNode.codeDiscount.DiscountCodeBasic.codes %}{{codes_item.code}}{% endfor %}",
  "rewardIssuedAt": "{{sendAdminApiRequest.codeDiscountNode.codeDiscount.DiscountCodeBasic.createdAt}}",
  "rewardExpiryAt": "{{sendAdminApiRequest.codeDiscountNode.codeDiscount.DiscountCodeBasic.endsAt}}"
}

See Reward Log for the full field reference

Typical HTTP Request chain

Code
Trigger: Order paid
  → HTTP Request: POST streak_log / challenge_log
    → Condition: body.achievedMilestoneRewardLog.id is not empty
      → Create Discount Code (Shopify native)
        → HTTP Request: PATCH reward_log with coupon
          → Send email to customer with coupon

Resource	Description
Streak	Configure the streaks your Flow actions log against
Challenge	Configure the challenges your Flow actions log against
Milestone	Reward checkpoints that trigger the reward log
Reward Log	The reward record updated by Update Milestone Reward Log with Coupon
Template	Widget copy and localisation settings
Theme	Widget visual styling
Floating Widget	Launcher button configuration
